Facilitate Efficient Collaboration Without a PC
• The webOS 3.0+ smart platform makes it possible to collaborate without the need for a PC based on its high performance.
• The embedded IDB app enhances the optimized work-flow for efficient collaboration.

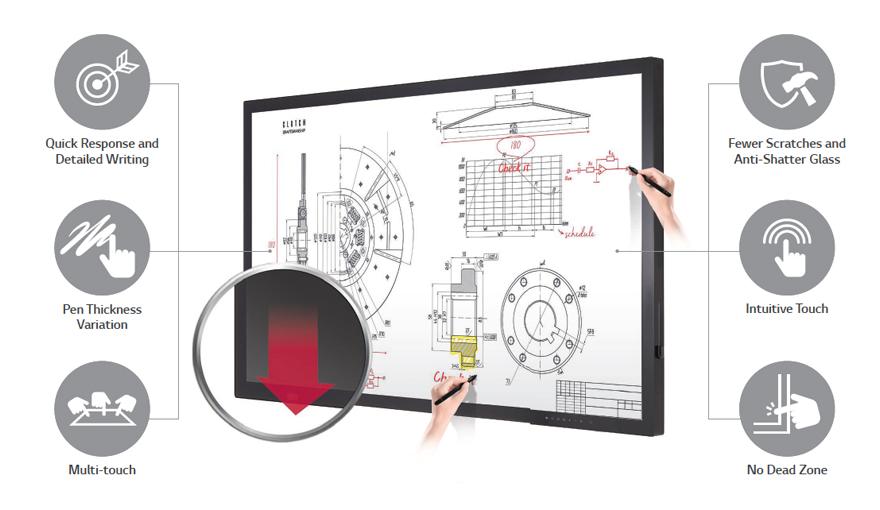

Precise Touch Performance
• Quick Response and Detailed Writing: The screen recognizes small touch points accurately and instantly shows the response to the touch point. This kind of accuracy and granularity means that users can use IDB both as a realistic handwriting tool and for detailed complex content such as drawings.
• Pen Thickness Variation: The thickness of the pen can be adapted to the user’s writing speed, even when using the passive pen. Lines or characters become bolder as the writing speed increases. This makes users feel as if they are writing on paper using their usual ballpoint pen.
• Multi-touch It allows multi-touches from 20 points (86TR3D) to 40 points (TC3D Series) so that multiple participants can simultaneously use touch features.
• Scratch-Resistant and Anti-Shatter Glass: The LG IDB has an advanced tempered screen coating to minimize scratches*. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event of an external shock.
• Intuitive Touch: Users will find the IDB easy to use because the touchscreen performance feels similar to their mobile phones or tablets.
• No Dead Zone: Unlike IR touch screens, the display accurately detects touch points at the corners and edges of the display.

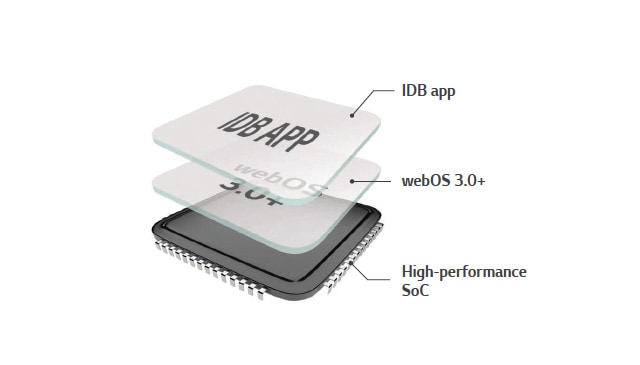

SoC and LG webOS
LG webOS 3.0+ is powered by high-performance System-on-Chip/SOC and can execute several tasks at the same time without the need for a separate media player or PC. Especially when combined with the IDB app, the LG IDB offers both interactive collaboration as well as an intuitive writing application, meaning additional licenses for IDB solution are not required.

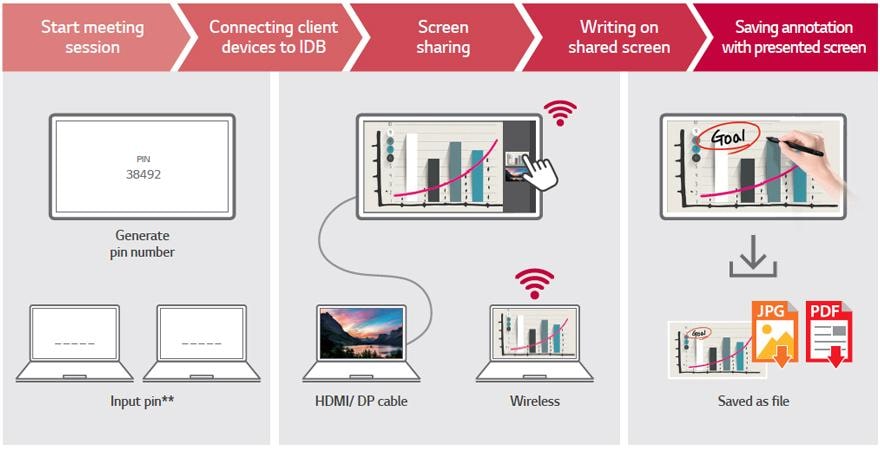

IDB App for Efficient Collaboration
The LG IDB app provides users with a convenient and effective meeting experience beyond expectation. Additionally, a virtual meeting space can be created with the IDB, with participation access limited to users who enter a pin number generated by the IDB. Once the participants are in, the meeting session is ready to start.
|Aspect Ratio||16 : 9|
|Native Resolution||1,920 x 1,080 (FHD)|
|Viewing Angle (H x V)||178 x 178|
|Input||HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0|
|Output||Touch USB 2.0 (2)|
|External Control||RS232C in/out, RJ45 in|
|Bezel Width||36.1mm(T/L/R), 42.2mm(B)|
|Monitor Dimension (W x H x D)||1,530.8 x 883.8 x 71.7 mm (w/o Handle)|
|Carton Dimensions (W x H x D)||1,650 x 1,035 x 228 mm|
|VESA™ Standard Mount Interface||300 x 300 mm|
|Yes||webOS 3.0+, IDB app, Crestron Connected® Certified, Mirroring, Soft AP, Beacon, Reader Mode, Auto Brightness Sensor, Internal Memory (64GB, System 8GB)|
|Yes||Temperature Sensor, ISM method, DPM Select, Brightness Control, PM Mode, Wake on LAN, Energy Saving, File Play with USB, 2 PIP/PBP, Built-in Wi-Fi (802.11n Combo), USB Cloning, Failover, No Signal Image|
|Operation Temperature Range||32 °F to 104 °F|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption Typ.||≤ 120 W|
|Power Consumption Smart Energy Saving||≤ 85 W|
|Power Consumption-DPM||≤ 0.5 W|
|Built-in Speaker||20 W (10W×2)|
|Safety||UL / cUL / CB / TUV / KC|
|EMC||FCC Class "A" / CE / KCC|
|OPS Type Compatible||Yes|
|Content Management Software||SuperSign Premium|
|Basic||Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea, 86TR3D only), Touch Pen Tip (1ea, TC3D only)|
|Optional||OPS Kit (KT-OPSA), LSW640A/B (Wall Mount)|
|Touch type||P-Cap(Ag Metal Mesh)|
|Available object size for touch||more than Ø 6 mm|
|Protection Glass Thickness||3.2T (Anti-Glare)|
|Multi touch point||Max. 40 Points|
|Built-In PC||Optional PC|
|Extended Touch Capable||No|
|Panel Resolution||Full HD (1920 x 1080)|
